1480-1500

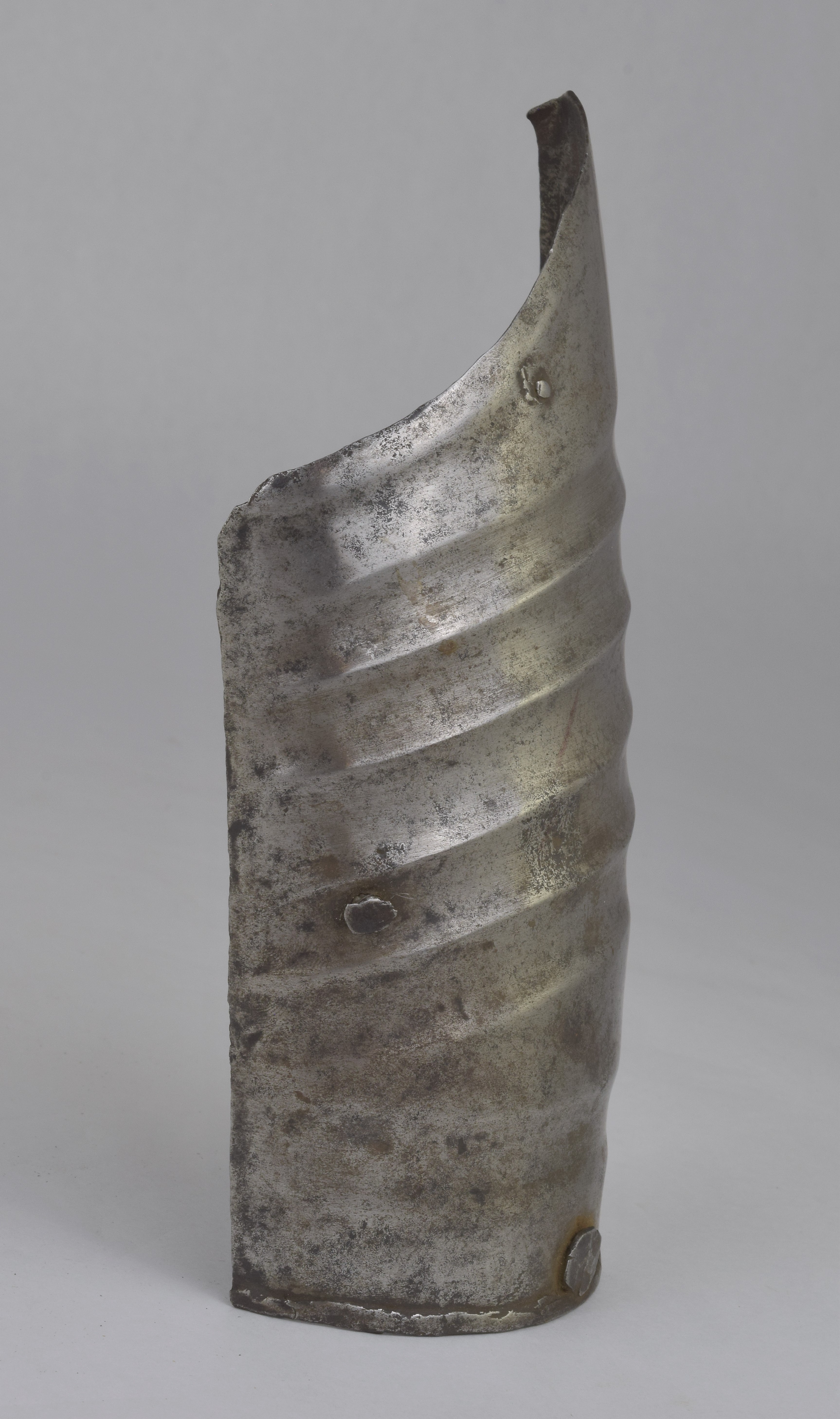

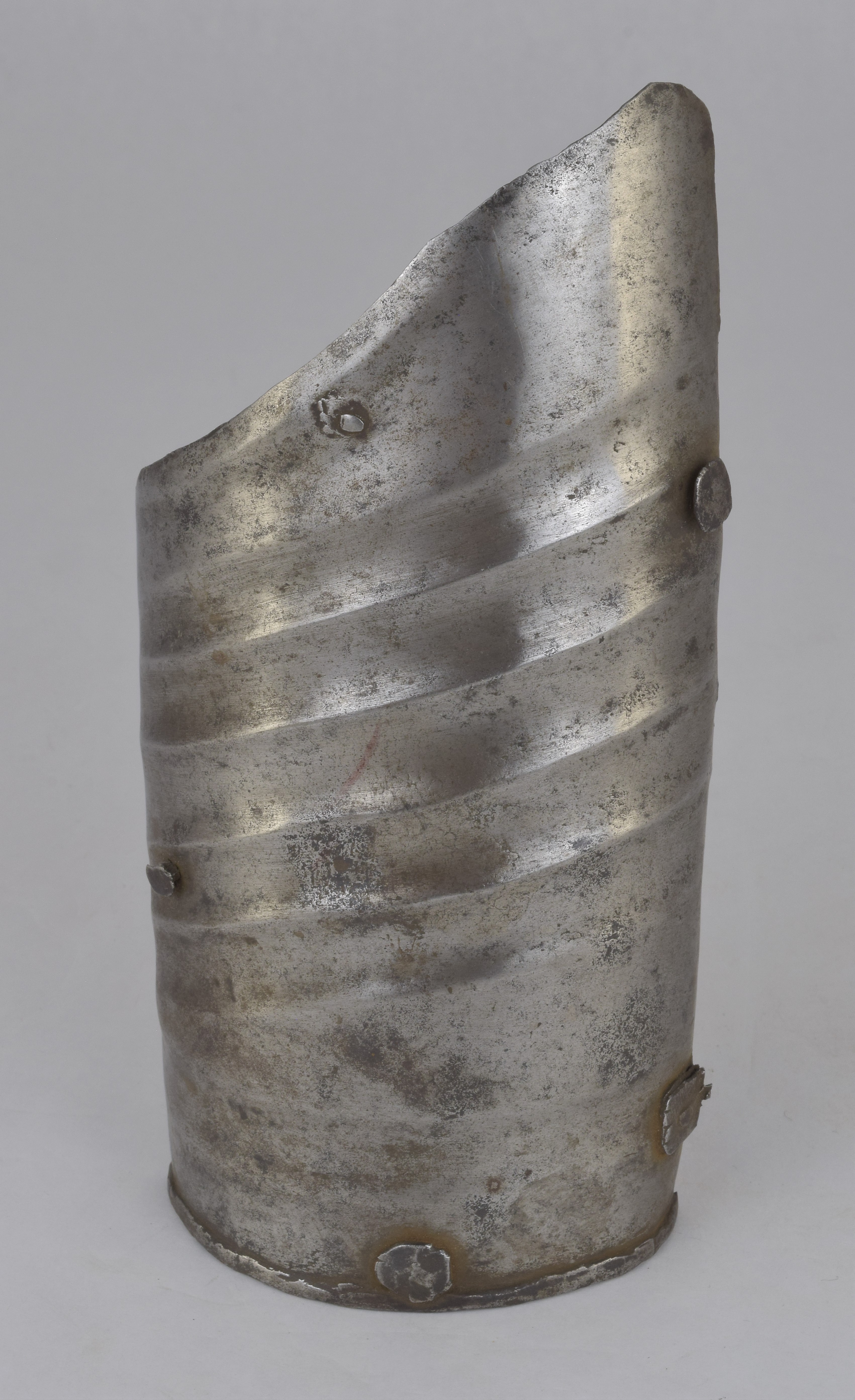

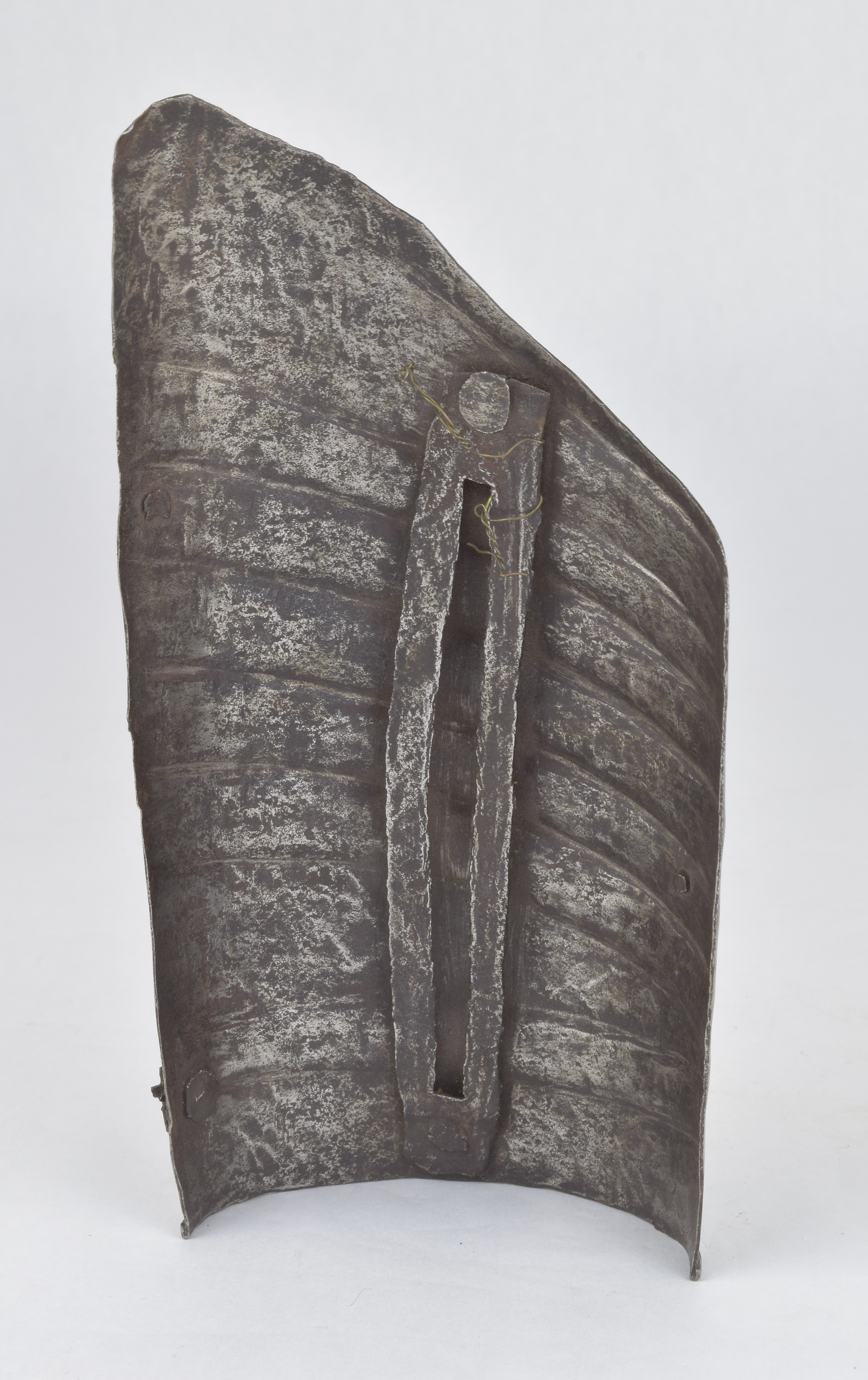

From a late 15th century German "splint" vambrace. Surface covered with diagonal flutes. 2 horzontal flutes paralleling the wrist. Simple outward fold at the wrist. Inside includes a separate strip running vertically that forms a slot for the hand protection. This is very atypical - these were often attached by placing a slot in the main plate. The vambrace covers the outer third of the arm.
8 1/2 in. long at the outside and 5 3/4 in. long at the inside. It is 6 in. wide at the top and tapers (very slightly) to 5 3/4 in. at the wrist. Normally a vambrace tapers more than this, but splints which include hand protection that slides inside the vambrace need to be much more tubular.
Thickness .028" - .048", mostly .030 - .035.
