Greaves and Sabatons 1580

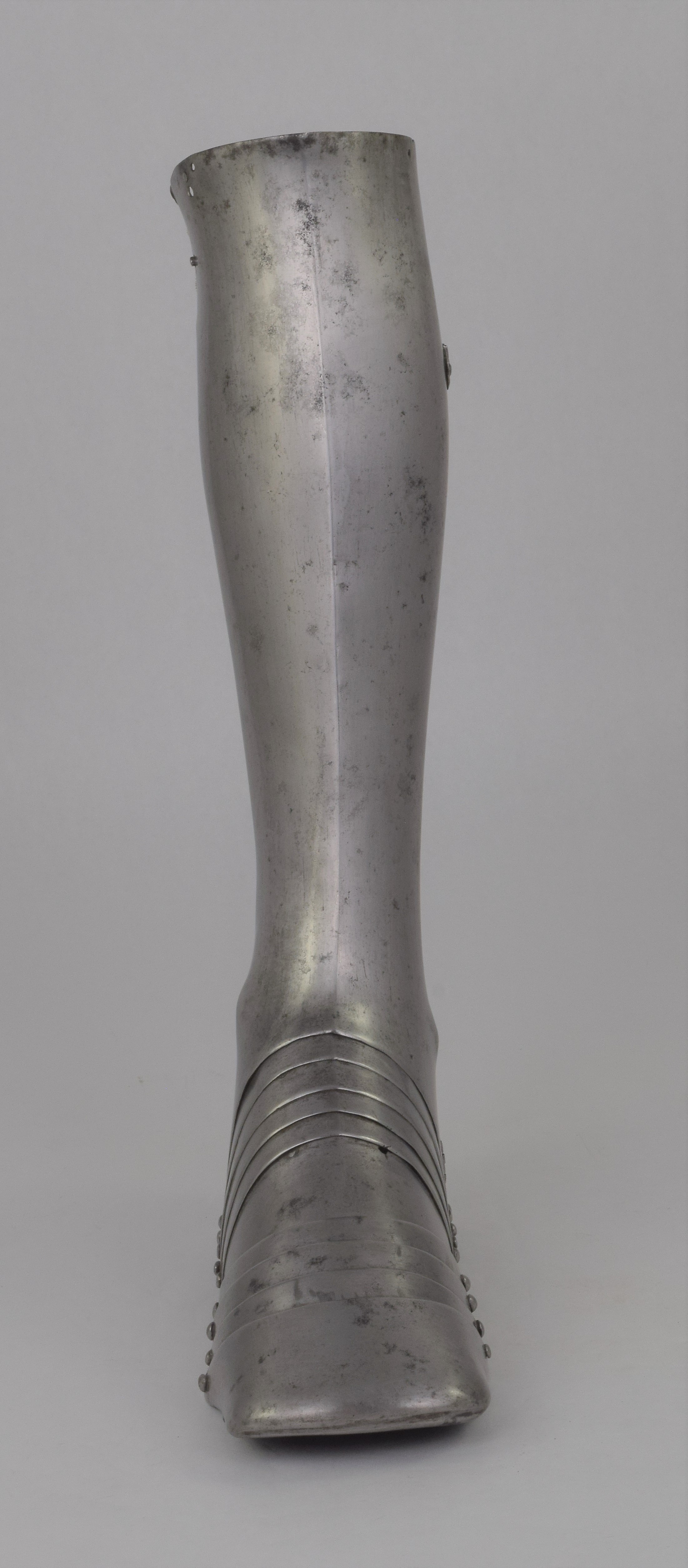

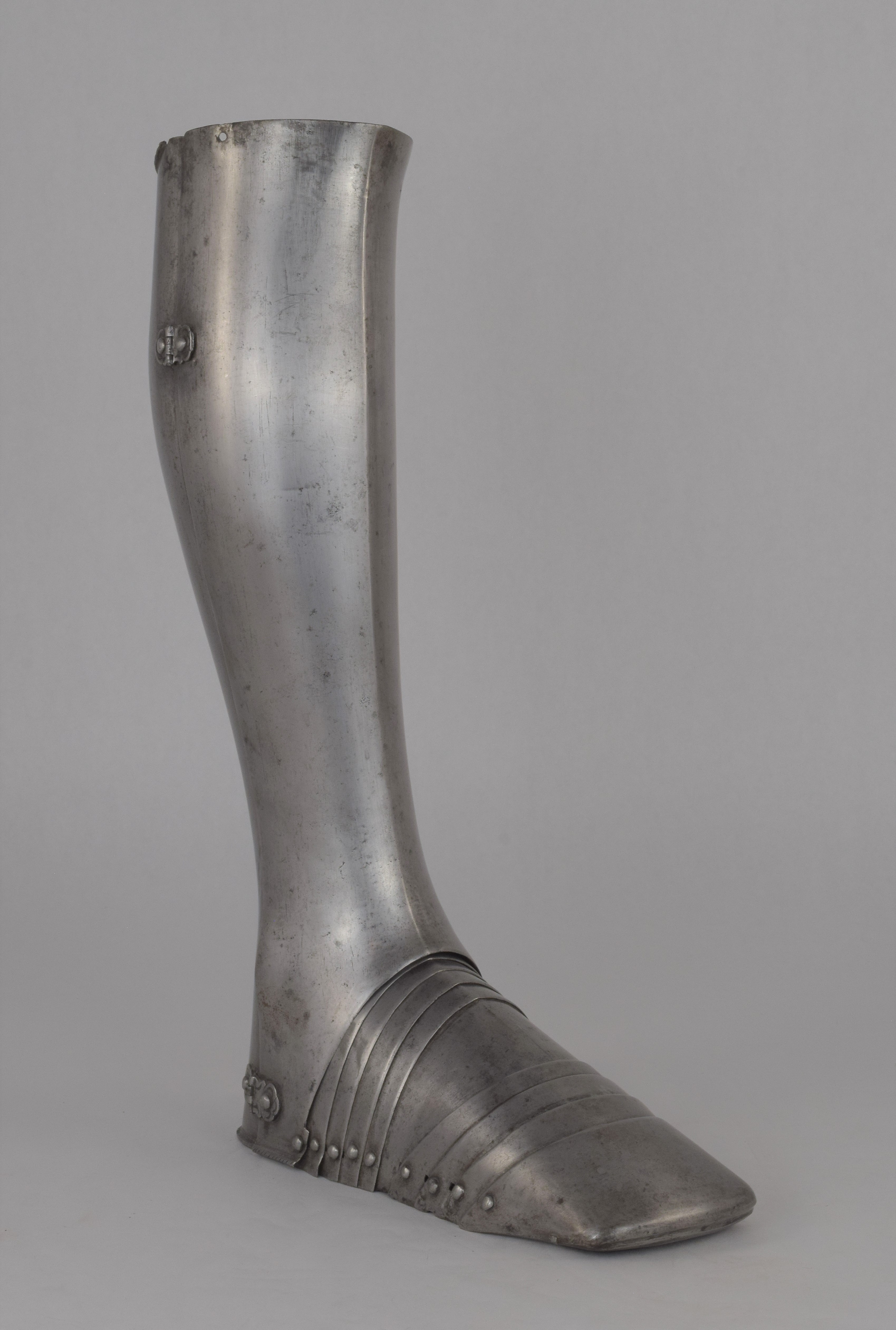

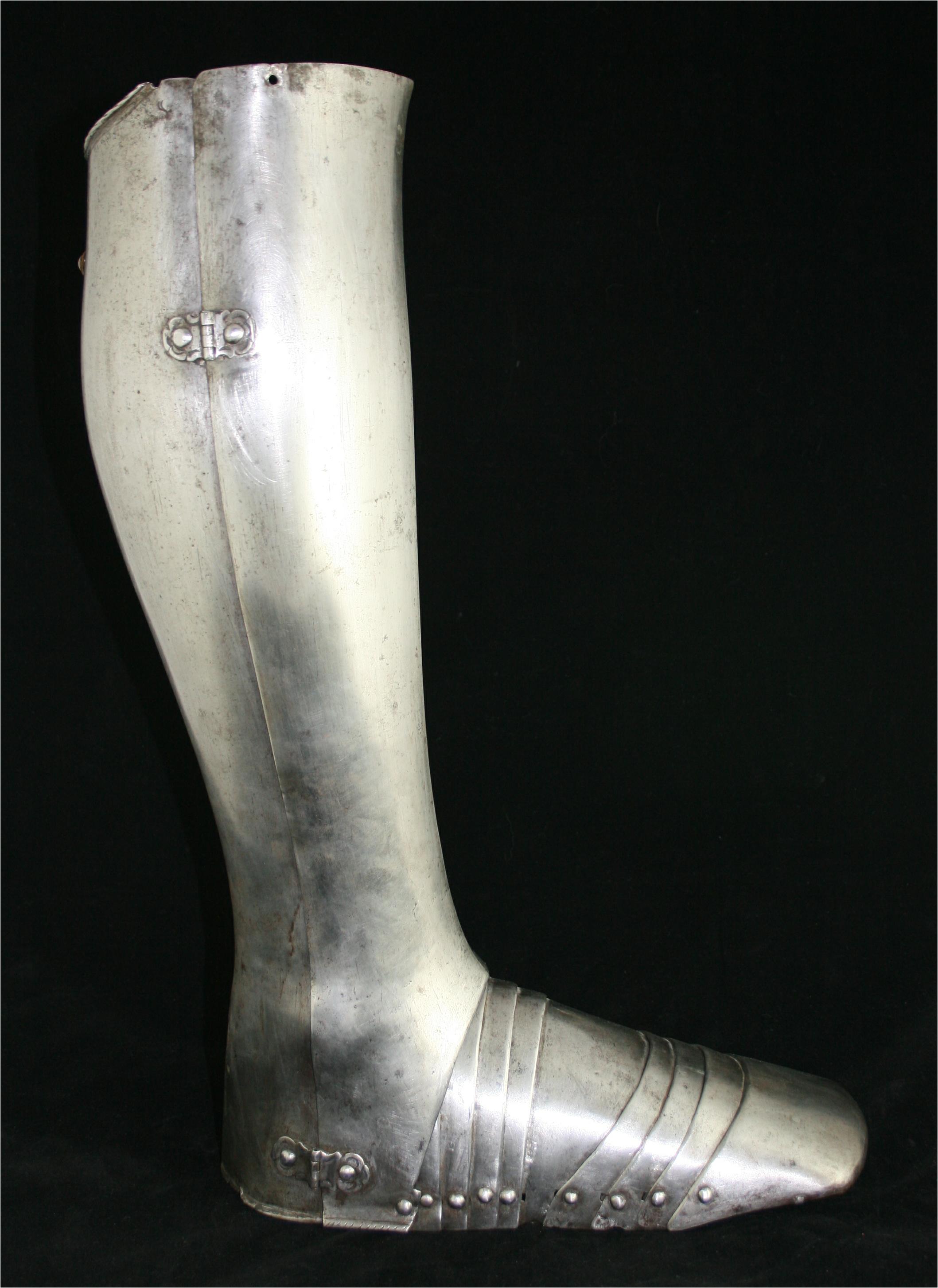

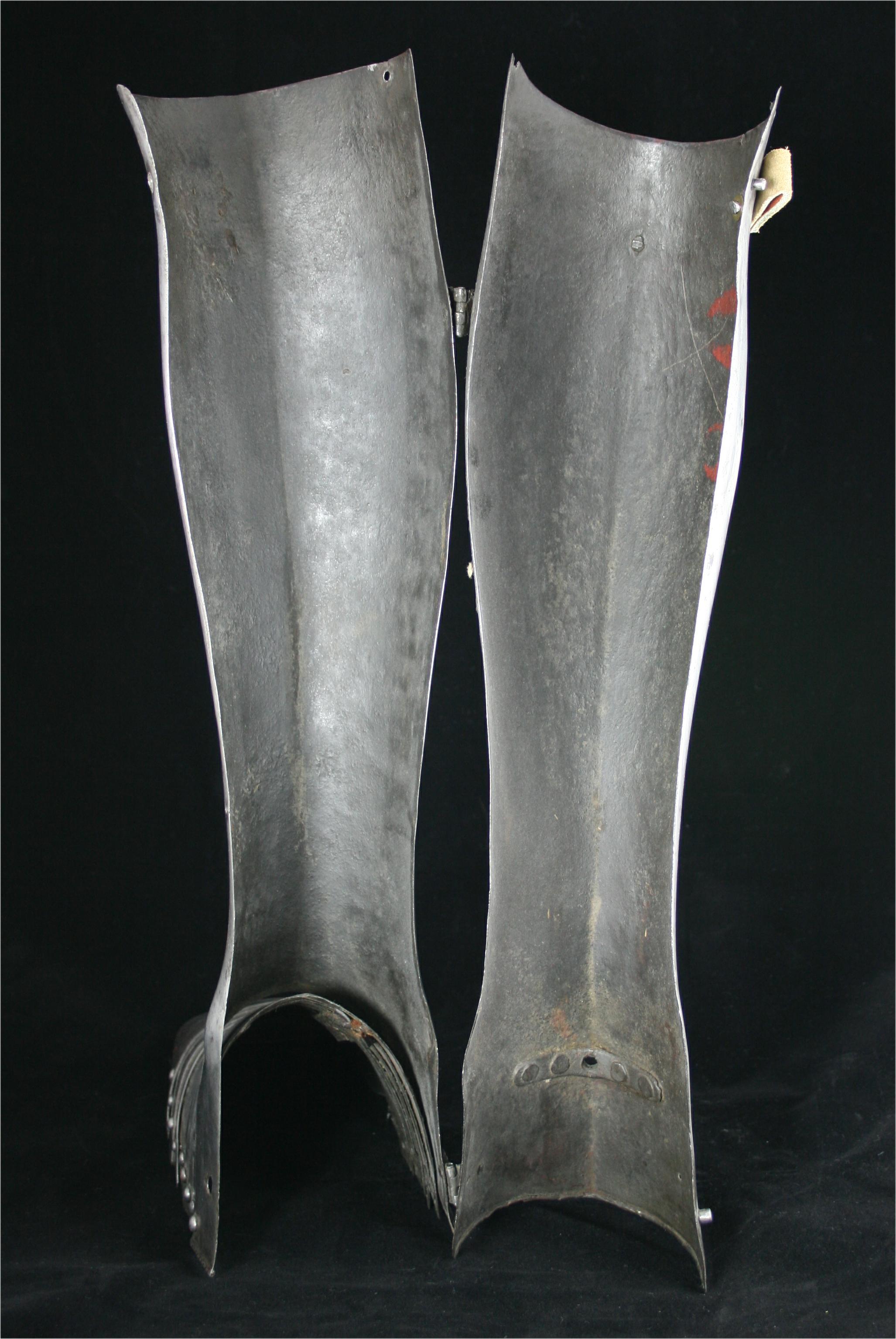

The greaves formed of two plates front and back formed to the leg hinged on the outside and secured by pins on the inside. Each with a sabaton of 9 plates (4 small plates overlapping a larger center plate then 3 smaller and terminal plate overlapping the central plate in the other direction) with terminal plate of boxed form turned over at the front and sides. Main plates creased at the center of the front and back. Sabatons creased at the center of the 4 plates closest to the greave, the crease ending in the main central plate. Small inward-turned, roped rolls formed around a wire at the bottom of the greave plates and very small, fine outward turned roll at the top of the back plate (behind the knee). The rear plate pierced with a hole for the spur. An additional plate rivetted into the inside of the plate to provide a threaded attachment for the spurs. 2 hinges on the outside of each greave. Hinges fully wrapped. The barrels cut into 4 sections (2 on each side). The ends rounded and filed to form simple flowers. Stamped with curved accents to emphasize the shape. Attached to the front and rear by one rivet each. Sabaton plates attached by sliding rivets at each side and originally 2 leather straps (one on each side of the instep, most of the inner remaining on both). Remains of leather strap in the base of the toe plate to secure sabaton to the shoe. 18 in. tall. Sabaton 11 3/4 in. from the back of the heel to the front of the toe. 80 painted inside the back plate of the right greave. From the George F. Harding Collection Thickness varies. Mostly .030 - .040, but with isolated areas that are thicker than .050.
